Land Rover Defender - Vivid Headlight

Land Rover Defender DRL Repair

Defender DRL Not Working?

The signature daytime running light on the 2020–2025 Land Rover Defender
L663 can become dim, yellow, partially lit, or stop working completely.
This is not a bulb replacement. The DRL is sealed inside the headlight
assembly and depends on internal electronic and optical components.
At Vivid Headlight, we repair the Defender DRL issue by opening the
headlight and servicing the internal DRL system directly.

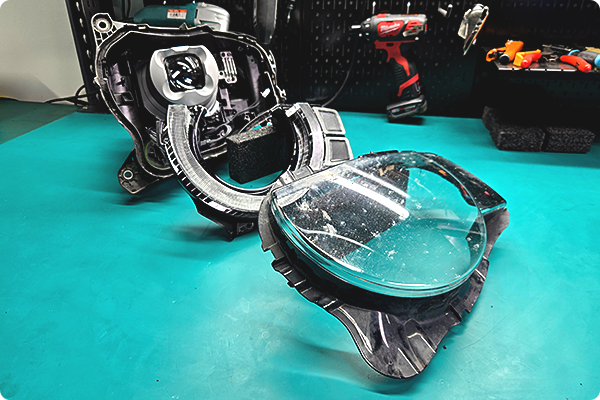

Defender DRL Failure Example

Internal DRL Failure

The Defender DRL failure is usually caused by one of two areas:
1. DRL PCB / LED board failure
2. Light-guide tube damage or degradation
In some cases, one component is the issue. In other cases,
both are contributing to failure.

DRL PCB / LED Board Failure

Behind the Defender’s signature DRL is a dedicated PCB board with LEDs that power the daytime running light.

When this board fails, the DRL may become dim, uneven,
intermittent, discolored, or completely inoperative.

Once the headlight is opened, we replace the DRL PCB/LED board because it is a known failure point. This prevents leaving a weak component inside the assembly after the headlight has already been disassembled.

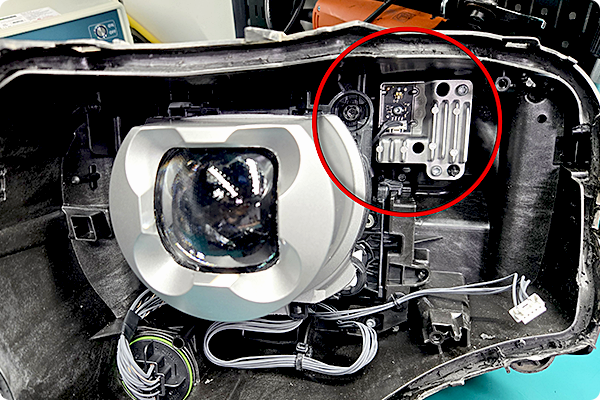

Headlight Opened for Internal DRL Repair

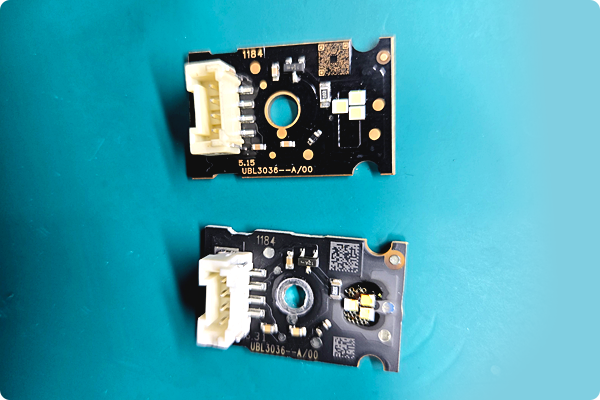

Defender DRL PCB / LED Board

Light-Guide Tube Repair

The LED board creates the light, but the light-guide tube carries that light through the signature DRL shape.

If the tube becomes burnt, yellowed, or optically damaged, the DRL may still look dim or uneven even if the LED board is working.

There is no standard replacement part for this tube. At Vivid Headlight, we repair the light-guide tube when it is contributing to the failure.

Complete Defender DRL Repair

Defender DRL failure can be caused by the PCB board, the light-guide tube, or both.

That is why we treat the DRL as a system. Once the headlight is opened, the PCB/LED board is replaced, and the light-guide tube is inspected and repaired when needed.

The goal is not just to make the DRL turn on. The goal is to restore proper function and appearance while preserving the original headlight assembly when possible.

Vehicle Fitment

2020–2025 Land Rover Defender L663 models equipped with LED signature DRL headlights.

This may include:

Defender 90 Defender 110 Defender 130

Fitment can vary by year, trim, and headlight option. We confirm the headlight style by photos or VIN before scheduling.

This repair is sometimes searched as Range Rover Defender DRL repair, but the correct model name is Land Rover Defender.

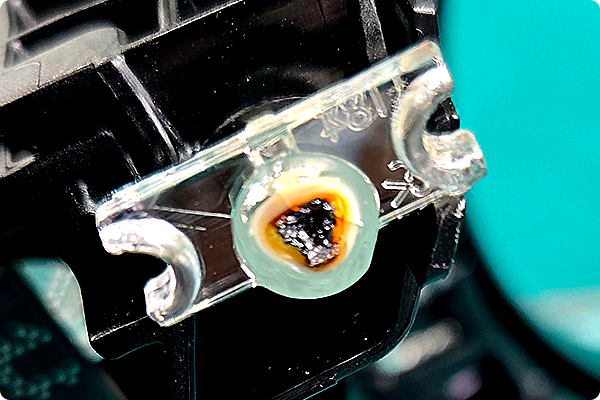

Damaged Defender DRL Light-Guide Tube

FREQUENTLY ASKED QUESTIONS

Can the Defender DRL be repaired without replacing the whole headlight?

In many cases, yes. If the headlight assembly is still serviceable, the failed internal DRL components can often be repaired.

What causes the Defender DRL to fail?

Do you replace the PCB board every time?

Do you replace the light-guide tube?

Is this a bulb replacement?

Defender DRL Not Working?

If your Defender daytime running light is dim, yellow, partially out, or completely failed, send us clear photos of both headlights with the DRLs turned on.

We can review the failure pattern and let you know whether your headlight is a candidate for internal DRL repair.

We typically respond within the same day.
